Interface Page Layout: Gallery

The Gallery layout displays records as visual cards in a grid arrangement — with an image, title, and selected fields shown on each card. It is the ideal Interface layout for any data that benefits from visual scanning: product catalogs, digital asset libraries, team directories, recipe collections, property listings, or portfolio showcases.

Common Use Cases

• Digital asset management — Browse a library of images, videos, or documents with thumbnails

• Product catalog — View products with images, names, and prices in a shopable grid

• Team directory — Display team members with photos, roles, and contact details

• Recipe collection — Browse dishes with photos and key info at a glance

• Property listings — Show properties with cover images and key specifications

• Content portfolio — Showcase published articles, campaigns, or creative work

Creating a Gallery Layout Page

1. In the Interface editor, click + Add Page in the left panel.

2. Select Gallery from the Layout Picker. Click Next.

3. Choose the source Stack and click Finish.

4. Configure the Image field and other card settings in the properties panel.

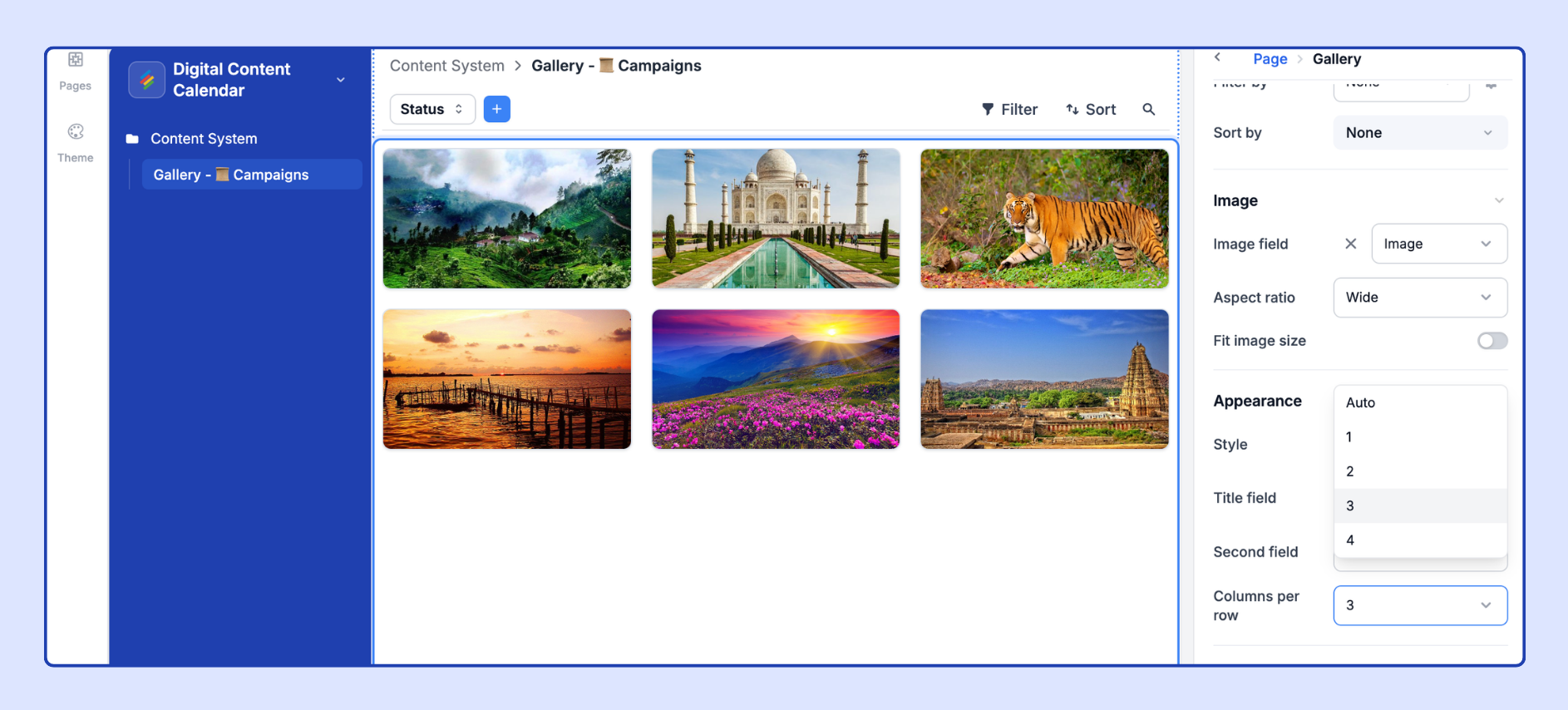

Gallery Visualization Properties

Data

Image Field

The attachment or URL field whose contents are used as the card's primary image. Configuration options:

• Attachment field — The first image attachment in the field is used as the card cover. Non-image attachments (PDFs, spreadsheets) show a file-type icon instead.

• URL field — If the URL points to a publicly accessible image (JPEG, PNG, GIF, WebP), Stackby fetches and displays it as the card cover. Private or authenticated image URLs will not render.

• If no image field is set or a record has no image, a grey placeholder is shown.

Title Field

The field displayed as the card's primary text label (shown below the image). Defaults to the primary field of the source Stack. Choose a different field if another field better identifies the record for your use case.

Sort by

Set the order of cards in the grid:

• Alphabetical (A→Z or Z→A) by any text field

• Numerical (low→high or high→low) by any number field

• Date-based (oldest or newest first)

• Manual sort — Enable drag-and-drop reordering of cards (requires Edit records inline to be on)

Fields

Choose which additional fields are displayed below the image and title on each card. Recommended: 2–4 fields maximum for readability. More fields make cards taller and reduce visual scanning efficiency.

Filter by

Apply static filters to limit which records appear in the gallery. Examples:

• Show only records where Status = "Published" or "Active"

• Show only records created by the current user

• Exclude archived or draft records

Appearance

Color by

Apply color indicators to cards:

• By Select field — Adds a colored accent bar or badge to cards based on a select field's option color.

• By Conditions — Custom color rules applied to card backgrounds or borders.

Fit image size

Controls how the card image is scaled to fit the card container:

• Toggled ON — Image is cropped/scaled to fill the entire card image area (cover mode). All cards have a uniform, consistent appearance regardless of original image dimensions.

• Toggled OFF — Image is letterboxed/pillarboxed to fit within the card area without cropping (contain mode). The full image is visible but cards may have different visual heights.

Recommendation: Toggle ON for product catalogs and visual portfolios where uniformity matters. Toggle OFF for documents or assets where seeing the full image without cropping is important.

Display field names

Toggle whether field labels (e.g., "Status:", "Price:", "Author:") are shown on cards alongside their values. Toggle OFF for a cleaner, label-free card layout when field meanings are obvious from context.

User Filters

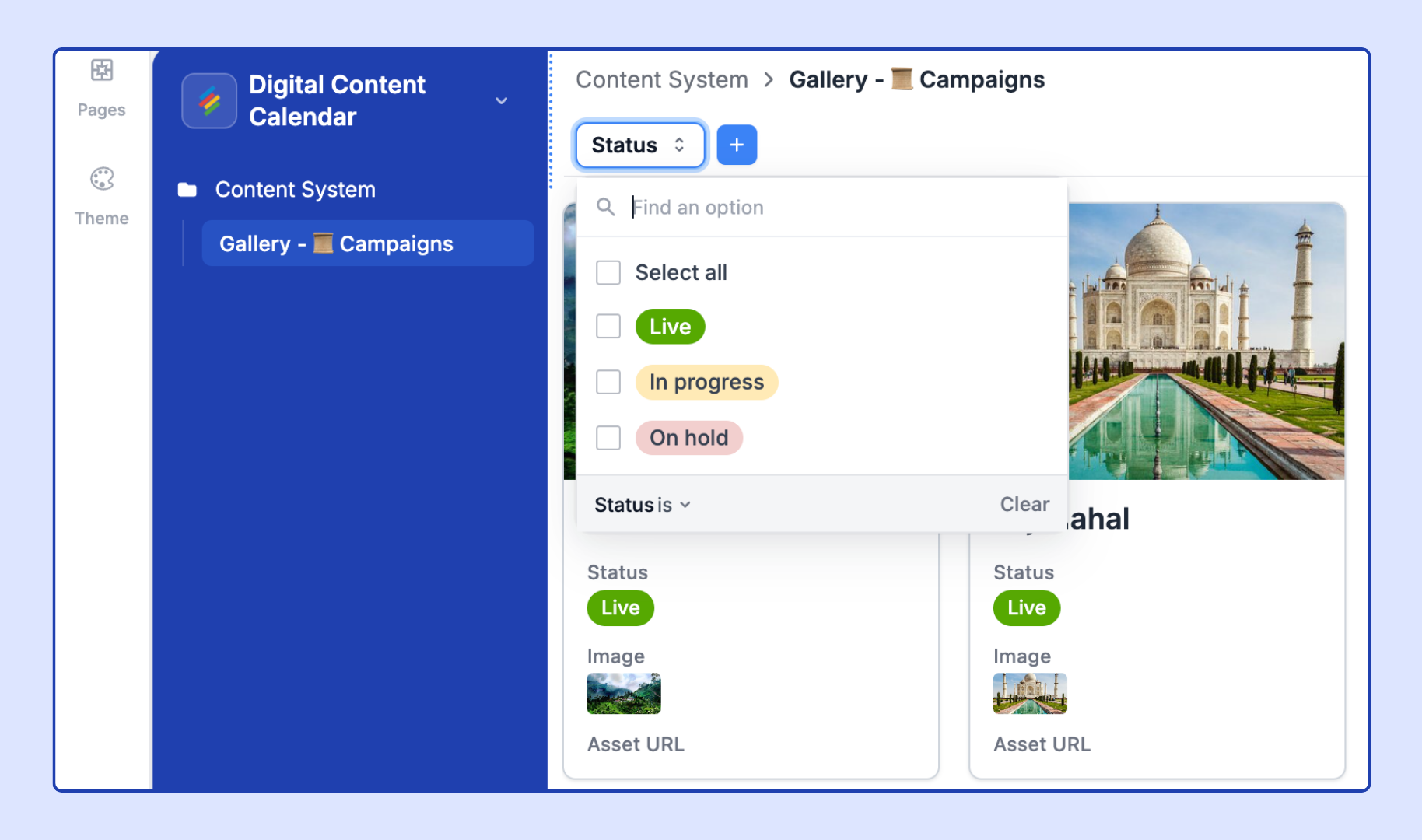

Configure Tabs or Dropdown filters to let end users filter the gallery. Examples:

• Tabs: "All Assets," "Images," "Videos," "Documents" (filtered by file type field)

• Dropdown: Filter by Category, Author, or Status

User Actions

• Click into record details — Click a card to open the full record detail panel. This is the primary interaction pattern for Gallery pages — users browse cards visually and click into the ones they want to examine or edit in depth.

• Edit records inline — Limited inline editing is supported on gallery cards (primarily for select fields and checkboxes rendered on the card face).

• Add / delete records inline — Enable a + button in the gallery for adding new records. New records will have blank image fields until files are attached via the record detail panel.

• Allow users to export data as CSV — Export the gallery's visible records as a CSV (does not include image files).

Gallery Card Design Tips

Optimal Image Dimensions

For the most visually consistent gallery:

• Square images (1:1 ratio) work best for team directories and product catalogs.

• Landscape images (4:3 or 16:9) work well for content portfolios and property listings.

• Portrait images (3:4 or 2:3) work for book covers, documents, or magazine-style layouts.

Stackby's gallery cards use a fixed-width card grid. Images are scaled to fill card width, so height varies by image ratio when "Fit image size" is off.

Recommended Field Configuration

For a clean, scannable gallery, limit cards to:

• 1 image

• 1 title field

• 2–3 supporting fields (e.g., Status, Category, Price)

More than 5 fields per card significantly reduces visual clarity. If more detail is needed, configure a Record Detail panel that users can access by clicking any card.
